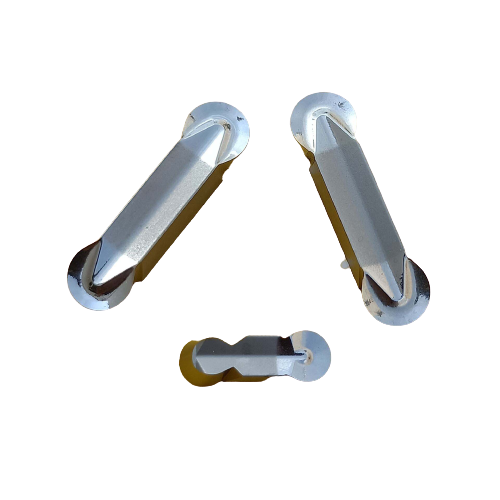

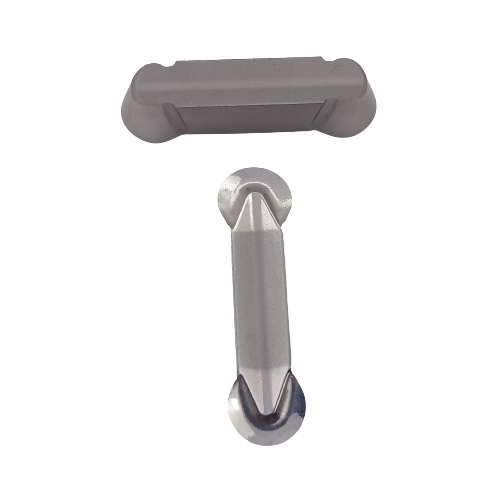

GIDA80-40 GDMA840 GIDA8.0-4.0 IC20/HO1 Aluminum inserts CNC Turning inserts/R4 Radius 4 ball end/Grooving inserts/Replace Iscar

Email：

GIDA80-40 GDMA840 GIDA8.0-4.0 IC20/HO1 Aluminum inserts CNC Turning inserts/R4 Radius 4 ball end/Grooving inserts/Replace Iscar

1 GIDA80-40 GDMA840 GIDA8.0-4.0 IC20/HO1 Aluminum inserts CNC Turning inserts/R4 Radius 4 ball end/Grooving inserts/Replace Iscar

2 Grade

Grade No	Coating	Work Material	Features
H01	Polished	Aluminum and non-ferrous material	Untra-fine cemented carbide substrate(0.6um),with superior wear resistance and strength, excellent for aluminum and non-ferrouse material finishing.

3 Chip Breaker

Code	Work Material	Recommend cutting datas	Recommend Application
AK	for Aluminum and non ferrous material	ap:0.1-4.0 fn:0.1-0.5	AK with high rake angle and low resistance cutting types secures long tool life in continuous cutting of aluminum turing.

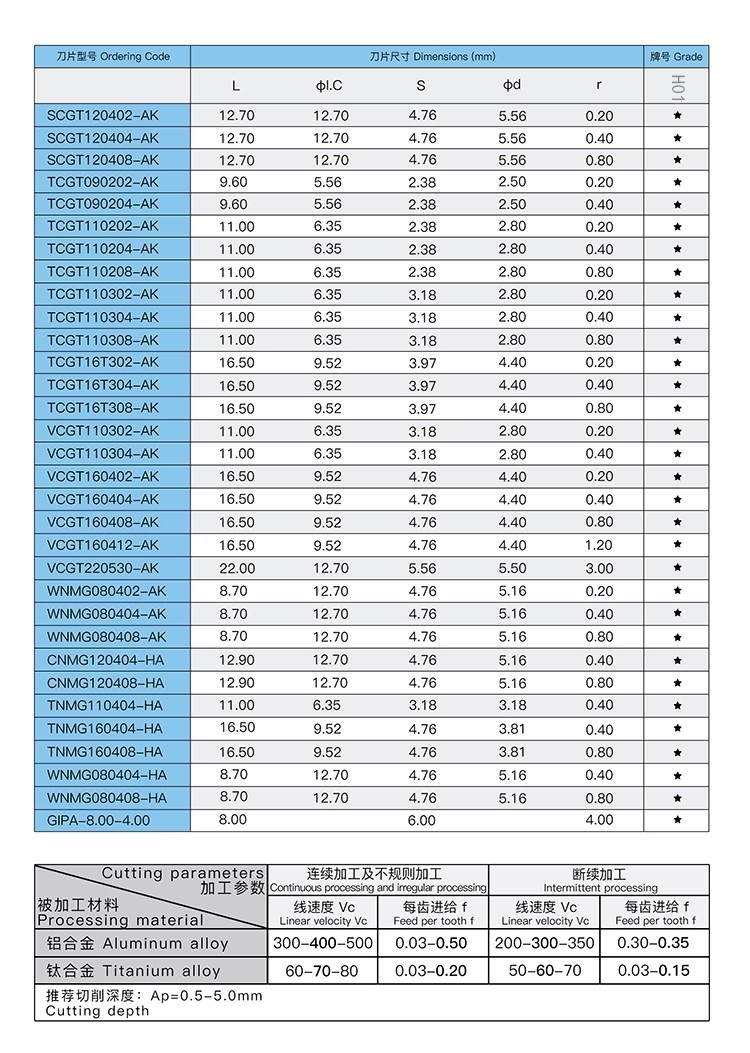

4 Specifications

undefined
